Express 150

The Express is designed to allow a glazier to unload, transport and install large plates of glass. It has a lifting capacity of 150 Kg’s. It can rotate glass measuring up to 3000 mm. It has adjustments to allow for side and top pocket glazing.

Handling glass plates and windows can be a back breaker due to the weight and dimension of the plates and the uneven grounds of construction sites. The methods to deliver plates haven’t changed in decades even with windows now getting heavier and larger.

One Stop Handling has released the Express, an innovative small portable lifter that allows one man to move plates weighing up 80kg or two men up to 150kg. The Express is loaded onto a truck in two 15kg parts and easily assembled in under a minute.

Once assembled the Express can unload plates off the truck and then transport the plates and windows on site. The large 330mm pneumatic wheels allow for travelling over rough grounds on construction sites. The wheelbase can be adjusted from 54 cm to 80cm allowing for narrow walkways on-site.
Two terrific features of the Express allow the lite or window to be rotated 360 degrees and secondly the operator can also index the lite allowing him to move through standard 90cm wide doorways.

  • Lifting capacity 150 Kg (100  with mast extension)
  • Mast extends to 2430mm high
  • Glazes above doorways
  • 2 x 250mm vacuum cups
  • Holds glass up to 3000mm x 1500mm
  • Rotates glass 360°
  • Pivots glass 90°to side for doorways
  • Wheel base extendable for better stability
  • One man operation
  • Portable for on-site glazing
  • Assembles in minutes

OPTIONS / UPGRADES

  • Side shifter for precise Installation
  • Window frame carrier
  • Lifts curved glass
  • Lower vacuum cup extensions
  • Forward vacuum cup extensions
  • Battery powered vacuum pump

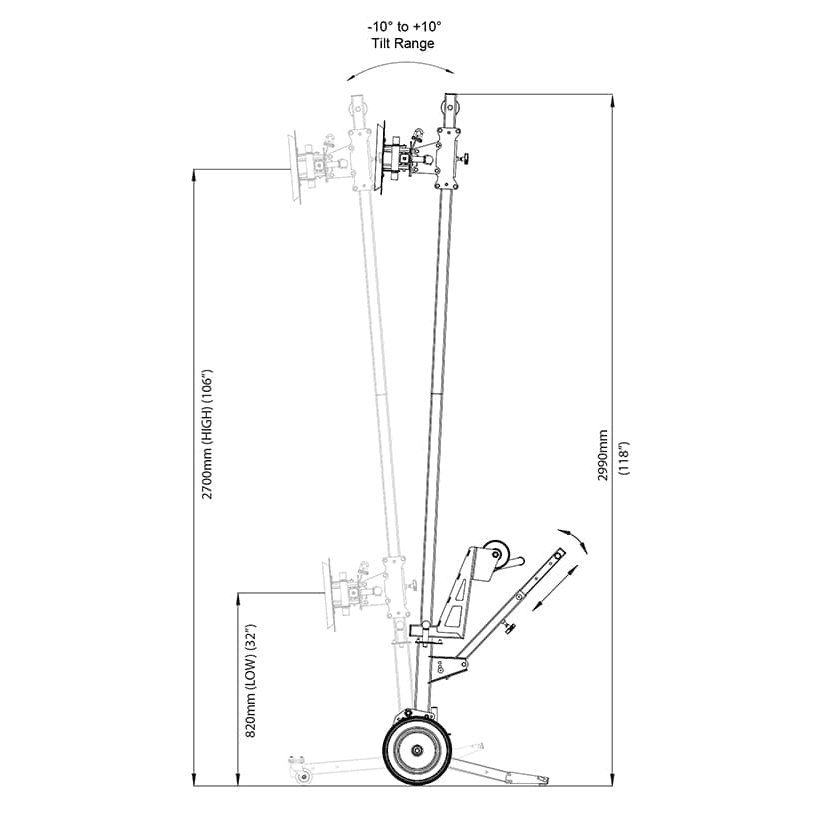

Product Specifications

Lifting capacity: 150Kg
Handles glass to 3000mm x 1500mm
Front castors retract for glazing
Vacuum Cups: 250mm manual
Puncture proof rear 330mm wheels
Pivots glass to side for doorways
Removable mast extension 990mm
360 degree rotation
