Workshop Cranes

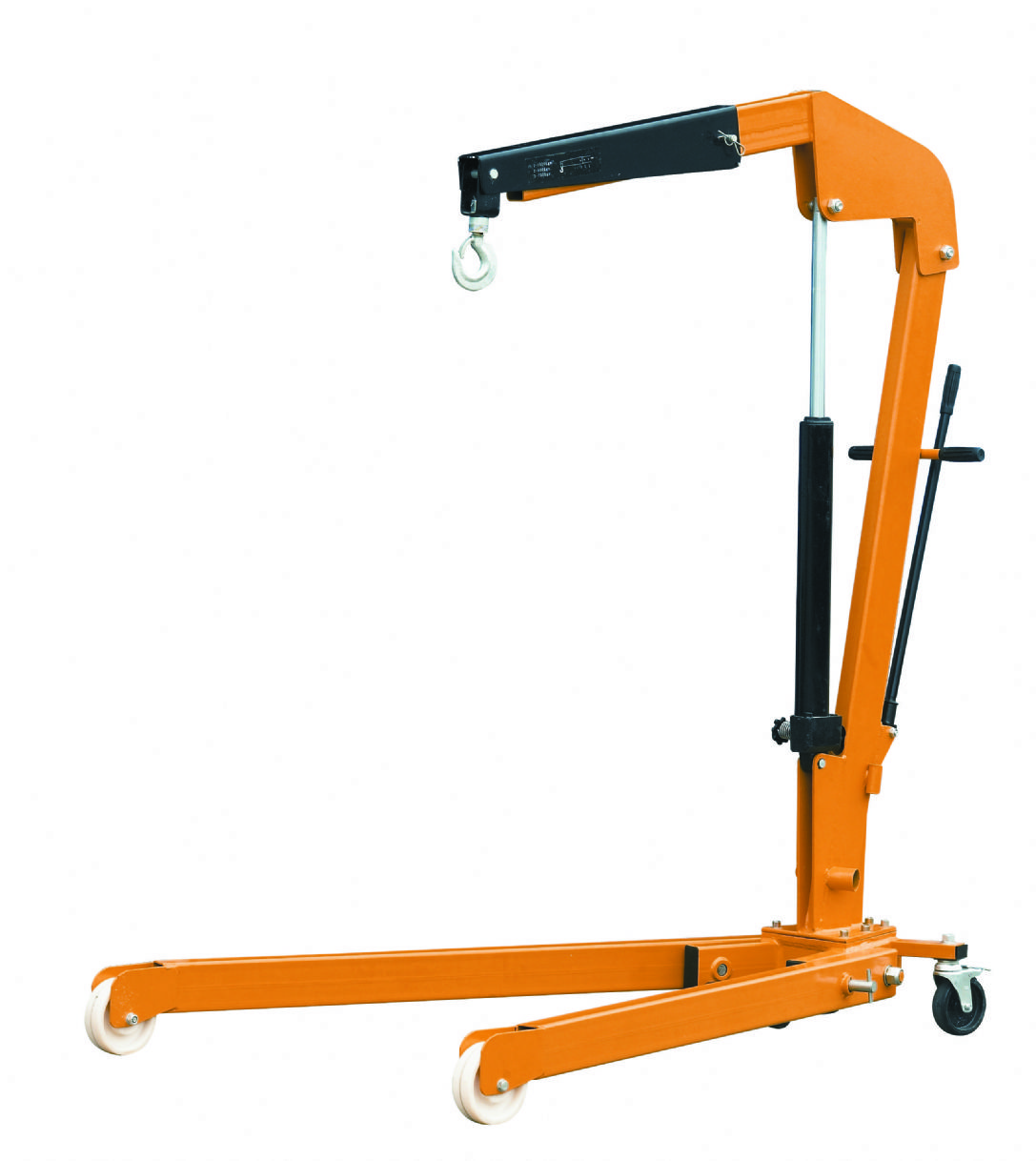

WARRIOR Folding Workshop Crane

Our WARRIOR Heavy Duty Workshop Cranes have a capacity of 2000Kg. It has also been overload tested to 125%. It is fitted with a three position telescopic jib, double-acting quick lifting hand hydraulic pump unit, and a heavy duty swivel hook complete with safety catch.

The folding mechanism saves on workshop space when not in use and please note this unit is mobile and free standing when folded.

  • Pressure relief valve to prevent overloading
  • Polyurethane wheels and rollers for stress free operation
  • CE marked

Allows operator freedom to work close to machines or over obstructions Designed with safety in mind this crane meets all international safety standards. Robust construction. Manufactured from hollow steel box section for combined strength and lightness. All Welded construction. All models feature a heavy duty, double-acting pump for fast action.

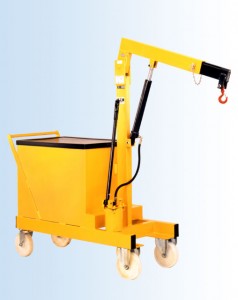

WARRIOR Counter-Balanced Workshop Cranes

Fitted with a safety relief valve to prevent overload.Top quality hydraulics fitted with chrome plated piston rod on ram and pump.Precision built hydraulic ram.Precision built hydraulic pump.

Fitted with hard wearing black nylon front wheels and swivel castors on the rear for easy movement of the crane when operational. Rear swivel castors have toe-guards fitted. Total locking foot brake fitted.

  • Individually Tested to 25% of Maximum Capacity
  • Heavy Duty Double Acting Pump For Fast Action
  • Fitted With Overload Safety Valve
  • Chrome Plated Piston on Both Ram & Pump
  • 3 Position Extending Jib
  • Heavy Duty Swivel Hook With Safety Latch

Workshop Cranes Capacities available:

Capacity 150KG
Capacity 250kg
Capacity 500kg
Capacity 1000kg

Contact Us for more information

Product Features

  • Capacities range from 125kg up to 2000kg
  • Manually or Battery operated with hydraulic double acting pump
  • Various hook heights available, we can manufacture to suit any application
  • Various reaches also available, we can also manufacture with 360 degree rotating Jib
  • Mild Steel finish as standard, Galvanised & Stainless Steel also available

Product Specifications

WARRIOR Folding Workshop Crane

Capacity @ setting 11000KG2000KG
Capacity @ setting 2800KG1600KG
Capacity @ setting 3700KG1400KG
Overall length1630mm1900mm
Overall width1120mm1165mm
Max hook height2445mm2500mm
Min hook height295mm175mm
