Products / Pallet Stackers /
Stainless Steel Stackers

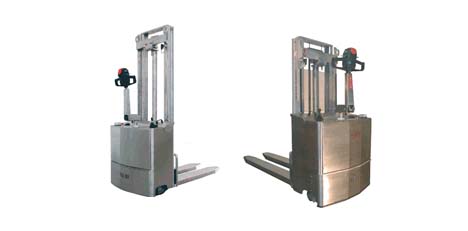

Stainless Steel Semi Electric Stacker
- Capacity 1000Kg
- Lift height 1700 to 3125mm
- Manufactured from 100% 304-grade stainless steel, it is ideal for use in food, chemical and pharmaceuticals industries.
- The truck is protected to IP54 so can be hose washed.
- Suitable for working in areas down to -30°C
- Standard fork size for Euro pallet, other fork sizes available on request
- Can be supplied with wide straddle legs for use with 4-way entry pallets
- Compact design allows for easy manoeuvring in narrow aisles
- Trucks carry CE mark and comply with all current safety legislation
| Model | Capacity | Lift height | Closed height | Raised height | Weight | Front Rollers | Rear wheels | Battery V/Ah | Lifting motor |
| 10:17 | 1000kg | 1700mm | 2000mm | 2000mm | 320mm | 2 x 80x90mm | 2 x 200x50mm | 2 x 12/63 | 1.6 kW |
| 10:24 | 1000kg | 2400mm | 1700mm | 2800mm | 380mm | 2 x 80x90mm | 2 x 200x50mm | 2 x 12/63 | 1.6 kW |
| 10:32 | 1000kg | 3200mm | 2100mm | 3600mm | 420mm | 2 x 80x90mm | 2 x 200x50mm | 2 x 12/63 | 1.6 kW |
Fully Powered Stainless Steel Stacking Trucks
| Model | CLX 12:17 | CLX 12:24 | CLX 12:32 | CPX 15:17 | CPX 15:24 | CPX 15:32 |
| Scope | 1200 | 1200 | 1200 | 1500 | 1500 | 1500 |
| Lifting mm | 1700 | 2400 | 3200 | 1700 | 2400 | 3200 |
| Standard free lift mm | 160 | 160 | 160 | 160 | 160 | 160 |
| Closed height | 2000 | 1700 | 2100 | 2000 | 1700 | 2100 |
| Raised Height | 2000 | 2800 | 3600 | 2000 | 2800 | 3600 |
| Weight | 658/505 | 738/585 | 778/625 | 758/538 | 848/628 | 878/658 |
| Front Rollers | 2/80×70 | 2/80×70 | 2/80×70 | 2/80×70 | 2/80×70 | 2/80×70 |
| Rear wheels | 2/100×35 | 2/100×35 | 2/100×35 | 2/100×35 | 2/100×35 | 2/100×35 |
| Driving wheel | 1/250×80 | 1/250×80 | 1/250×80 | 1/250×80 | 1/250×80 | 1/250×80 |
| Brake | ELECTRO MAGNETIC | ELECTRO MAGNETIC | ELECTRO MAGNETIC | ELECTRO MAGNETIC | ELECTRO MAGNETIC | ELECTRO MAGNETIC |
| Battery | 24/156 | 24/156 | 24/156 | 24/240 | 24/240 | 24/240 |
| Weight | 153kg | 153kg | 153kg | 220kg | 220kg | 220kg |
| Traction Motor | 0.8kw | 0.8kw | 0.8kw | 0.8kw | 0.8kw | 0.8kw |
| Lifting motor | 2.2kw | 2.2kw | 2.2kw | 2.2kw | 2.2kw | 2.2kw |
| Acceleration | Elec control | Elec control | Elec control | Elec control | Elec control | Elec control |
| Transmission | Gear | Gear | Gear | Gear | Gear | Gear |

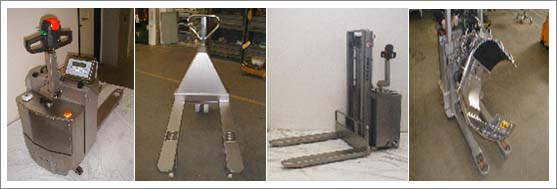

Customised Trucks
A range of tiller-controlled machines 100% completely in stainless steel AISI304, watertight and manufactured with all the treatments necessary to operate in corrosive (food industries) or protected (Hygienic Chemical Industries) atmospheres.
