TRACTIVE PUSHER TP250 COMPACT

UP TO 5000KG – TRACTIVE PUSHER TP250 COMPACT

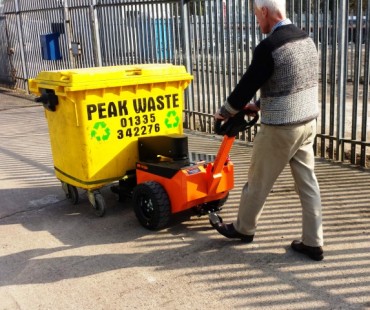

Our TP250 Tractive pusher is pedestrian operated and battery powered, designed to push, pull and manoeuvre wheeled loads. Used in rail applications this Tractive unit will move 25,000kg and move 5000kg on trolleys. They ensure that operators can enjoy safe and efficient handling at all times. Simple to use, robust and ergonomically designed, we believe these electric tug units are the best on the Market!

Uses include, moving all wheeled and semi-wheeled loads, stillages, trolleys, baggage trolleys, roll cages, railed bogies, paper rolls and almost anything else on wheels you can think of!



img_0859-640-x-480



20150325_143146-640-x-480-370x310third

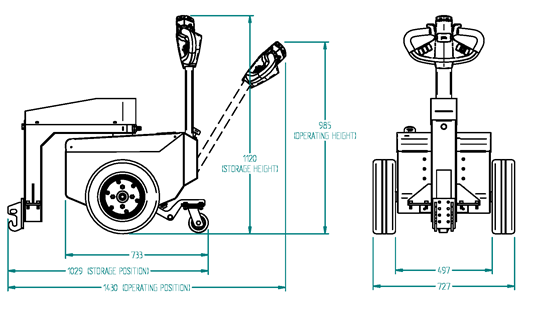

Technical Specifications:

Draw Bar Pull 2500N
Towing Capacity on Rails 25000kg
Towing Capaity on Castors 5000kg
Drive System AC Control
Motor Power 1000W
Controller Current 200A
Battery Capacity 70A/h
Max Speed 6kph
Turning Circle 1.5m
