Add mobility, with two braked castor wheels and two fixed wheels.
Rail wheel Frame
Eliminate level differences in a track bound transportation system simply. Can be supplied with or without powered drive unit.
Prevents goods from rolling of the table when wheel-borne loads are loaded/unloaded – particularly useful with loading dock lift tables.
Bridge the gap between the lift table and the loading dock or vehicle – particularly useful without loading dock lift tables.
Recessed and integrated in the lift table top.
Fitted on the lift table top. Includes an inductive sensor to avoid trapping risks.
Hydraulic shot bolts
Enable lift tables that operate above and below floor level to withstand severe loading conditions. Essential when vehicles drive over the lift table.
Pallet truck frame
Transport the lift table easily with a forklift or hand pallet truck.

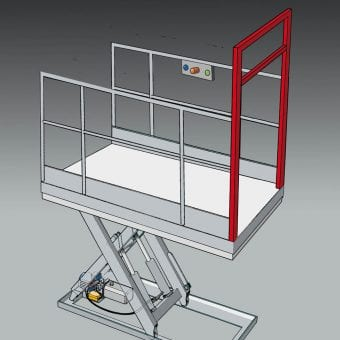

Side Barrier Rails
A 1100mm high rail with a mid rail and a 150mm high toe kick plate is a recommended option when the lift table is used by persons or as a goods lift between levels.
Upper level barrier rail when the lift table is in the lowered position. In fully raised position, the goal post is sized to allow 2000mm free clear entrance.
Self-Latching Hinged Swing Gate
Usually combined with the barrier rails. Supplied with electrical or mechanical locking or both. Self -closing and latching to provide a safe enclosure for an operator and load travelling max 2m between levels.
Raise and Tilt Platform
Hydraulically actuated hinged tilt platform, complete with safety edge. Max tilt angle 90°.
Stack Height Control System
Lift and lower the lift table automatically with photocell control and load recognition.
Reduce the risk of injury or entrapment with a chain mesh curtain against mechanical damage.
Bellows - Roller Curtain
Protects the table from dust, dirt and debris in exposed environments.
Often used in production systems to compensate for different levels.
