Personnel Lift

Personnel Lift small and manageable when transporting

All ALP-Personnel-Lift are convincing through their
perfected technology, superb finish as well as their
efficiency.

The telescopic extending special aluminium profiles are
particularly lightweight and allow working heights of
up to 14 meters.

Thanks to the standard loading unit, the ALP-Personnel-
Lifts can be loaded onto a trailer or into a transporter
in a one man operation.

Even movement through small passage ways, standard
doorways or transport in elevators is no problem due
to the compactness of the lifts.It goes without saying that all lifts conform to all current safety regulations.

Make up your own minds about Personnel Lift

All ALP-Personnel-Lift are technically perfected German products and demonstrate this through their robust build and at the same time, compactness. Metric materials are exclusively used in the production of our lifts.

All components are subject to the stringiest of checks from our quality management systems. You will receive free on-site advice and demonstrations carried out by our qualified and experienced staff.
We offer a countrywide complete service which includes everything from sales and customer service covering our complete product range.

All ALP-Personnel-Lifts come with comprehensive standard equipment that allows simple and user-friendly operation.

1.5 KW drive motor

Hand or foot control as required

Extra control unit below

Outrigger transport barrow makes transport easier

Forklift pocket for problem free transport

Wheels with stabilizing brakes

Outrigger control unit with warning light

Loading unit with height adjustable wheels

Spirit level for correct and safe positioning

Product Overview

• Ideally suited to:

  Repair work

• Maintenance

• Assembly work

• Installation work

• Cleaning work

Product Specifications

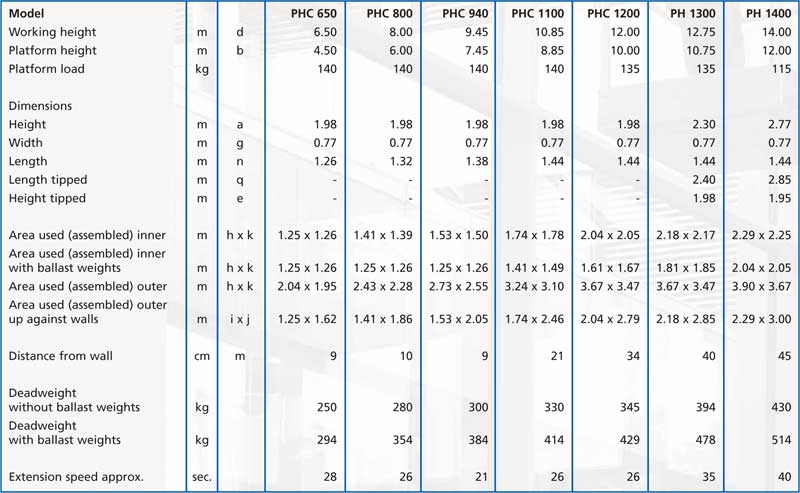

Technical Details

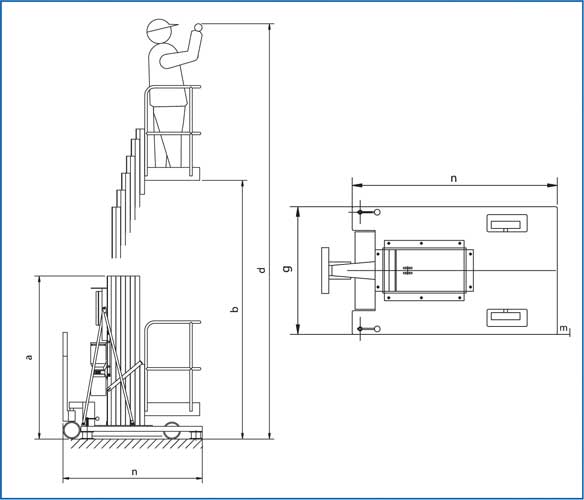

Model			PHC 650	PHC 800	PHC 940	PHC 1100	PHC 1200	PHC 1300	PHC 1400
Working Height	m	d	6.50	8.00	9.45	10.85	12.00	12.75	14.00
Platform Height	m	b	4.50	6.00	7.45	8.85	10.00	10.75	12.00
Platform Load	kg		140	140	140	140	135	135	115
Dimensions
Height	m	a	1.98	1.98	1.98	1.98	1.98	2.30	2.77
Width	m	g	0.77	0.77	0.77	0.77	0.77	0.77	0.77
Length	m	n	1.26	1.32	1.38	1.44	1.44	1.44	1.44
Length Tipped	m	q	-	-	-	-	-	2.40	2.85
Height Tipped	m	e	-	-	-	-	-	1.98	1.95
Area used (assembled) inner	m	h x k	1.25 x 1.26	1.41 x 1.39	1.53 x 1.50	1.74 x 1.78	2.04 x 2.05	2.18 x 2.17	2.29 x 2.25
Area used (assembled) inner with ballast weights	m	h x k	1.25 x 1.26	1.25 x 1.26	1.25 x 1.26	1.41 x 1.49	1.61 x 1.67	1.81 x 1.85	2.04 x 2.05
Area used (assembled) outer	m	h x k	2.04 x 1.95	2.43 x 2.28	2.73 x 2.55	3.24 x 3.10	3.67 x 3.47	3.67 x 3.47	3.90 x 3.67
Area used (assembled) outer up against walls	m	i x j	1.25 x 1.62	1.41 x 1.86	1.53 x 2.05	1.74 x 2.46	2.04 x 2.79	2.18 x 2.85	2.29 x 3.00
Distance from wall	cm	m	9	10	9	21	34	40	45
Deadweight without ballast weights	kg		250	280	300	330	345	394	430
Deadweight with ballast weights	kg		294	354	384	414	429	478	514
Extension speed approx	sec.		28	26	21	26	26	35	40

Model			PHC-HI 650	PHC-HI 800	PHC-HI 940	PHC-HI 1100
Working Height	m	d	6.60	8.00	9.40	10.80
Platform Height	m	b	4.60	6.00	7.40	8.80
Platform load	kg		140	140	140	140
Dimensions
Height	m	a	1.98	1.98	1.98	1.98
Width	m	g	0.79	0.79	0.79	0.89
Length	m	n	1.37	1.37	1.37	1.43
Area used (assembled) inner	m	h x k	0.79 x 1.37	00.79 x 1.37	0.79 x 1.37	0.89 x 1.43
Distance from Wall	cm	m	0	0	0	0
Deadweight	kg		650	678	715	825
Extension speed approx.	sec.		28	26	21	26

Accessories Images

Power supply in working basket

Special wheels available for operation in differing locations

Crane lifting point for safe transportation

Tool box

Ballast weights for use with shorter outriggers

Counter weight for shorter outrigger

Rotating (axis) wheels for 360° positioning

Extendable working basket

Protective cover
