Products / Pallet Stackers /
Light Duty Stackers
WARRIOR Light Duty Stacker
Our Ministackers are excellent for everyday light duty work area where loads to be lifted far exceed “the Manual Handling Directive” but do not demand a heavy duty industrial stacker.
With capacities of 200kg and 400kg respectively and two lift height options the Ministackers are suitable for many internal jobs too.
- Capacity 1000kg
- Pulling handle on rear for steering truck
- Hand operated parking brake
- Foot guards on rear wheels
- Full guarding on mast
- Tandem lift chains for extra safety
- Manual lift / travel
Conforms to BS EN 1757-1:2001
Model | Capacity (kg) | Load Centre (mm) | Max Lift (mm) | Min Fork Height (mm) | Fork Spread (mm) | Fork Length (mm) | Overall Length (mm) | Overall Width (mm) | Overall Height (mm) |
GT1015 | 1000 | 600 | 1525 | 60 | 540 | 1170 | 1550 | 1310 | 1950 |
GT1029 | 1000 | 600 | 2885 | 60 | 540 | 1170 | 1550 | 1310 | 1995 |

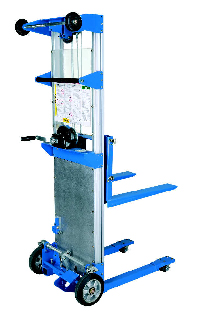

Manual Mini Stacker with hand winch
Manufactured partly in aluminium. Especially sutiable for hand workers during the installation, for example, electircs and plumbing. The forks and support legs can be removed quickly and eaisly so that it takes the minimum space during transport.
Art No. | 44020 | 44025 |
Identification | AL-1250 ST | AL-1250 ST |
Capcity (Kg) | 225 | 180 |
Lifting Height (mm) | 90-1250 | 90-2500 |
Lifting speed loaded /unloaded | Cranck | Cranck |
Fork width(mm) | 630 | 630 |
Fork length (mm) | 570 | 570 |
Fork Wheel diameter (mm) | 50×50 | 50×50 |
Steering Wheel diameter (mm) | 200×50 | 200×50 |
Weight(Kg) | 51 | 60 |
Total height (mm) | 1710 | 2960 |
Total width (mm) | 630 | 630 |
Total length (mm) | 880 | 880 |

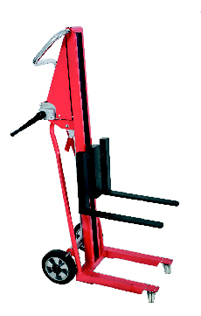

Manual Stacker Trolley
Light stacker with big wheels that easily takes you over uneven surfaces with it’s big wheels. Low light weight and ergonomical shaped handle makes it useable in many situations. Hand controlled brake for safety.
Art No. | 44012 |
Identification | PM 120 |
Capcity (Kg) | 120 |
Lifting Height (mm) | 1050 |
Fork width (mm) | Moveable between 345-485 |
Fork length (mm) | 570 |
Fork Wheel diameter (mm) | 200×50 |
Steering Wheel diameter (mm) | 50×20 |
Weight(Kg) | 31 |
Total height (mm) | 1360 |
Total width (mm) | 460 |
Total length (mm) | 920 |
