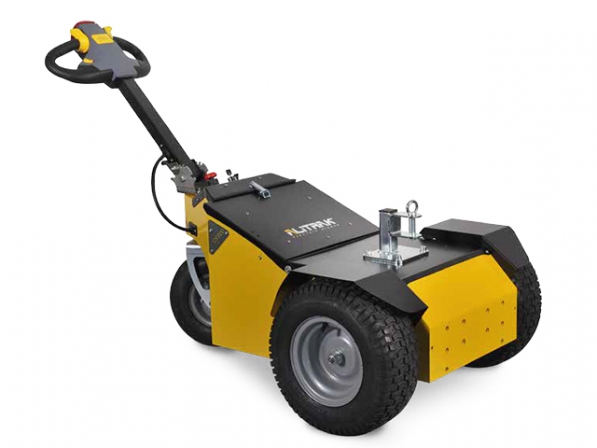

OT900

Battery powered electric tug up to pull loads to 3000Kg

The OT-900 is a towing equipment, with three wheels and tiller steering. It has been designed to easily move trailer trolleys and other containers on wheels, in safety and comfort, reducing physical stress and improving productivity. Many configurations are possible by choosing among different types of batteries and tires. It can be fitted with several accessories that make the standard product adaptable to many uses.

Folding and height adjustable tiller for better comfort of use

Butterfly accelerator, easy to control with your thumb

Battery charger on board, display with light indication of charge status

Pivoting wheel allows a minimum of space to steer

  • Pulling capacity on flat surface: 3000 Kg
  • Loading capacity on flat surface: 300 kg
  • Pulling speed: fast 5 Km/h – slow 2,5 Km/h
  • Pushing speed: fast 3 Km/h – slow 1,5 Km/h
  • Battery recharging time: approx. 8 hrs.
  • Battery: AGM 2 x 12V/85 Ah C20
  • Electric motor: 24V/900 watt DC S1
  • Length: 1530 mm
  • Width: 780 mm
  • Height: 1040 mm
  • Weight: 180 kg
  • Dashboard display: OT-900 Remaining battery charge
  • Battery charger: On board – 13A high frequency
  • Speed control: Butterfly type
  • Parking brake: Electromagnetic with the possibility of release
  • Oil bath differential
Equipment body3 wheels
Driving wheels on diferentialTrailer type
Driving control typeFoldable tiller
AcceleratorButterfly type
Hook height430mm abt
Battery chargerOn board, 13 A High Frequency
Dashboard displayRemaining battery charge
Parking brakeElectromagnetic with the possibility of release
BatteriesFlooded 2 x 12V/72 Ah C20 (or AGM 2 x 12V/85 Ah C20)
Electric motor24V/900 watts S1
Product net weight178 kg abt
