TRACTIVE PUSHER TP500 COMPACT

UP TO 12000KG – TRACTIVE PUSHER TP500 COMPACT

Our TP500 Tractive pusher is pedestrian operated and battery powered, designed to push, pull and manoeuvre wheeled loads. Used in rail applications this Tractive unit will move 50,000kg and move 12,500kg on trolleys. They ensure that operators can enjoy safe and efficient handling at all times. Simple to use, robust and ergonomically designed, we believe these electric tug units are the best on the Market!

Uses include, moving all wheeled and semi-wheeled loads, stillages, trolleys, baggage trolleys, roll cages, railed bogies, paper rolls and almost anything else on wheels you can think of!

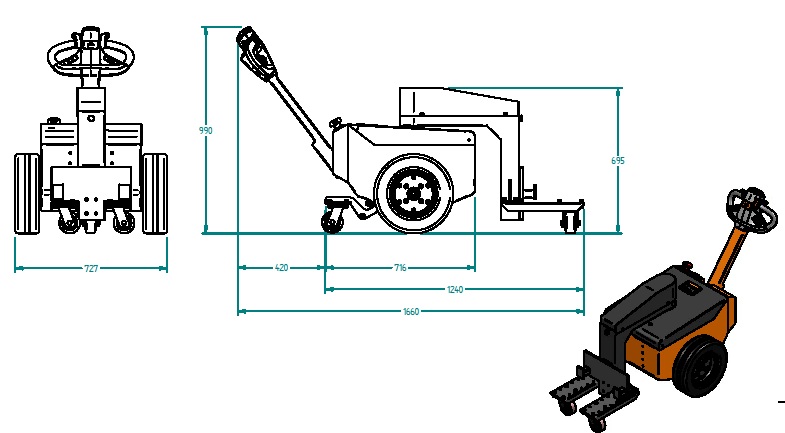

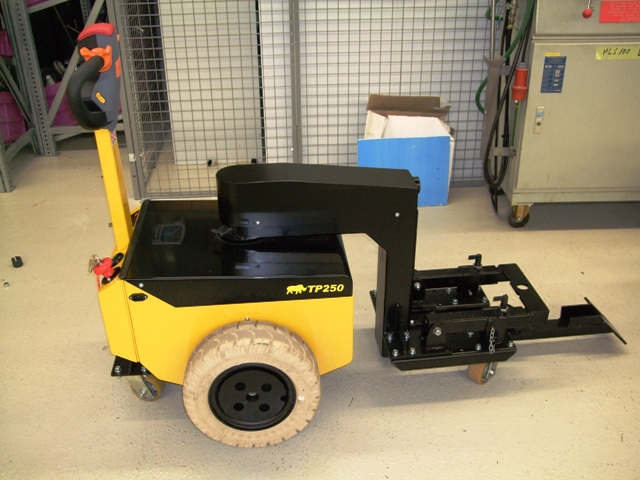

tp-250-compact2 tp-250-compact1

Technical Specifications:

Draw Bar Pull 5000N
Towing Capacity on Rails 50000kg
Towing Capaity on Castors 12000kg
Drive System AC Control
Motor Power 1200W
Controller Current 350A
Battery Capacity 70A/h
Max Speed 6kph
Turning Circle 1.5m
