Vacuboy – Vacuum Lifters


Vacuum Lifter Vacuboy
Efficient, high-quality products and an outstanding service combined with competent, fair consulting – that is FEZER. As a leading company for vacuum handling our world-wide reputation has been excellent – for the past 75 years.

Why not choose a simpler kind of handling, more efficient production processes and higher operational safety? Root for FEZER and just move more – you will not regret it.

Always the best solution

When designing our products we always focus on the requirements of our customers. Their problems and our long-standing know-how have often resulted in masterpieces that set new standards. The first priority is always operational safety, ergonomic operation and simplicity of the systems. To live up to these high expectations and to further develop our processes Fezer is certified according to DIN ISO 9001:2000.

Always there for you
13

Whether you require advice, delivery or service support – FEZER will help you in any case, quickly and reliably. Our competent servicemen help you with installations and setting the system into operation; regular maintenance guarantees a high measure of operational safety of the system in use.

FEZER vacuum handling devices are one of the most commonly used products for dealing with different work pieces. No matter if you have to load drums, place stone slabs,move machine parts or plate like materials,coils and split strips. The vacuum handling technology from FEZER allows you to carry out your handling tasks in a safe, gentle and, above all, very quick way.

Advantages that pay off!

All FEZER products correspond to the national and international safety regulations and are supplied with CE markings.This guarantees a constantly high quality standard and offers you other advantages which pay off in no time:

14

  • Safe, gentle and quick handling
  • No damages to the work pieces
  • Simple handling that requires just 1 operator
  • High operational safety by highest safety technology
  • Low operation costs due to robust and high-grade quality
  • Two years of warranty and right of return for goods delivered for tests
  • Complete solutions with chain hoists, crane system and installation

VacuPowerlift

Gripping and lifting all in one.The VacuPowerlift is the all-rounder among the vacuum lifters with a capacity of up to 150 kg

VacuBoy,VacuGiant,VacuCoil

Transport, swivelling, turning over – the lifter series for the transport of dense, platelike materials up to several tons` weight.

VacuPoro,VacuWood

The lifter series for the transport and swivelling of porous materials or wooden planks and gluelam beams, even with more than 20 meter`s length.

StarTrack, LiftFix

Wall and column slewing jibs up to 6 meters of jib length and crane systems with rigid guiding systems for accurate handling.

VacuStand

Endless rotation, swivelling, and turning over.The ideal solution when all sides on a work piece have to be worked on.

Water separator for moist and slightly wet goods, ideal for water cutting machines

Water separator for moist and slightly wet goods, ideal for water cutting machines

Suction plate suspension with top and bot- tom springs for gentle handling and ideal load balance on more than 4 suction plates

Suction plate suspension with top and bot- tom springs for gentle handling and ideal load balance on more than 4 suction plates

“Battery Pack”” for power-independent operation by battery and charger

“Battery Pack”” for power-independent operation by battery and charger

Warning unit EWIII with integrated power failure signal and large lamps that light up in green or red.

Warning unit EWIII with integrated power failure signal and large lamps that light up in green or red.

Manipulating handle with mounted hand slide valve with safety catch for “suction” and “release”

Manipulating handle with mounted hand slide valve with safety catch for “suction” and “release”

“Pneumatic Tool” for compressed air operation and pneumatic warning unit

“Pneumatic Tool” for compressed air operation and pneumatic warning unit

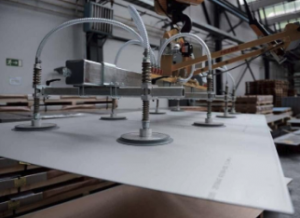

Vacuboy Horizontal
Safe, gentle, fast

The VacuBoy is the ideal aid for feeding metal forming machines, stockpiling and the removal of all dense, plate-shaped materials.The unique modular sys- tem enables the VacuBoy to adjust to almost any requirement and guarantees an absolutely safe and simple handling. All lifters are equipped with a hand- slide valve and acoustic warning unit with power shortage indicator. Additionally there is a variety of upgrade options.

Get a grip

The VacuBoy moves plates of various materials and sub- stances. Robust plates or sensitive panes – theVacuBoy takes it on.Absolutely safe and gentle.

  • Aluminium and steel plates
  • Scaled and rusty plates
  • Chequered and studded sheets
  • Plastic plates
  • Glass plates and window panes
  • Stone slabs
  • Laminated chipboards
  • Sandwich elements
  • and many more!
Carrying capacity (kg) Type Workpiecedimensions max. (mm) min. (mm) Pump Number of suction plates L1 (mm) B1 (mm) B2 (mm) H (mm) A (mm) Own weight(kg)
200 VB 80 2.000 x 1.000 600 x 400 T4.4 4, 6, 8 1.800 800 650 470 80 45 – 55
400 VB 80 2.000 x 1.000 600 x 400 T4.4 4, 6, 8 1.800 800 650 470 80 50 – 70
600 VB 80 3.000 x 2.000 1.000 x 600 T4.8 4, 6, 8 2.400 800 650 470 80 60 – 80
800 VB 80 3.000 x 2.000 1.000 x 600 T4.8 4, 6, 8, 10 2.400 800 650 &470 80 80 – 100
1000 VB 100 3.000 x 2.000 1.000 x 600 T4.16 6, 8, 10, 12 2.400 800 650 570 80 120 – 180
1200 VB 100 4.000 x 2.000 1.000 x 600 T4.16 6, 8, 10, 12 2.400 1.200 900 570 80 180 – 220
1400 VB 100 4.000 x 2.000 1.000 x 600 T4.16 8, 10, 12, 14 2.400 1.200 900 570 80 200 – 240
1600 VB 100 4.000 x 2.000 1.000 x 600 T4.16 8, 10, 12, 14 3.000 1.200 900 570 80 240 – 300
1800 VB 100 4.000 x 2.000 1.000 x 600 T4.16 10, 12, 14, 16 3.000 1.200 900 570 80 280 – 320
2000 VB 100 4.000 x 2.000 1.000 x 600 T4.16 10, 12, 14, 16 3.000 1.200 900 570 80 300 – 360



Nothing’s easier than swivelling!

For the loading of up right machines or for vertical storage of products the VacuBoy is also available with a swivel mechanism.By mean so felectrical cylinders or gear motors engaged load scan be swivelled effortless lyand stopped in any position.

This is controlled by push-buttons which are mounted user- friendly on the manipulating handle.This series contains all the required safety features and can be adjusted to individual needs at any time.



Carrying capacity (kg) Type Workpiecedimensions max. (mm) min. (mm) Pump Number of suctionplates L1 (mm) B1 (mm) B2 (mm) H (mm) A (mm) Own weight(kg)
100/50 VB 80-90 2.500 x 1.250 1.000 x 400 T4.4 4, 8 1.800 800 650 500 80 60 – 70
200/100 VB 80-90 4.000 x 2.000 1.000 x 400 T4.4 4, 8 1.800 800 650 1.050 80 70 – 80
400/200 VB 80-90 4.000 x 2.000 1.000 x 400 T4.4 4, 8 1.800 800 650 1.050 80 75 – 90
600/300 VB 80-90 4.000 x 2.000 1.000 x 400 T4.8 4, 8 2.400 800 650 1.050 80 80 – 110
800/400 VB 100-90 4.000 x 2.000 1.000 x 400 T4.8 4, 8, 12 2.400 800 650 1.050 80 300 – 340
1.000/500 VB 100-90 4.000 x 2.000 1.000 x 600 T4.16 4, 8, 12 2.400 800 650 1.050 80 320 – 360
1.200/600 VB 100-90 6.000 x 2.500 1.000 x 600 T4.16 8, 12, 16 2.400 1.200 900 1.150 80 340 – 380
1.400/700 VB 100-90 6.000 x 2.500 1.000 x 600 T4.16 8, 12, 16 2.400 1.200 900 1.150 80 360 – 400
1.600/800 VB 100-90 6.000 x 2.500 1.000 x 600 T4.16 8, 12, 16 3.000 1.200 900 1.150 80 460 – 500
1.800/900 VB 100-90 6.000 x 2.500 1.000 x 600 T4.16 8, 12, 16 3.000 1.200 900 1.150 80 480 – 520
2.000/1.000 VB 100-90 6.000 x 2.500 1.000 x 600 T4.16 8, 12, 16 3.000 1.200 900 1.150 80 500 – 540



The lightweight with the high capacity!
onestop

The VacuBoy Mini is especially suitable for handling stable loads like barrels, drums, stone slabs and glass elements. By reallocating the crane hook in one of the two suspension eyes loads cannot only be transported horizontally but also vertically. The device can be equipped with either a single suction plate or with a beam with several mounted suction plates. Additionally, the VacuBoy Mini is available with a quick-change coupling. This allows to use different assem- blies for different applications.

VacuBoy Mini with quick-change coupling

VacuBoy Mini with quick-change coupling

VacuBoy Mini handling sheet metal

VacuBoy Mini handling sheet metal

VacuBoy Mini handling sheet metal

VacuBoy Mini with special assembly for handling of drums l



<

Carrying capacity (kg) Type Workpiecedimensions max. (mm) min. (mm) Pump Number of suctionplates L1 (mm) B1 (mm) B2 (mm) H (mm) A (mm) Own weight(kg)
100/50 VBM-1 2.500 x 1.250 400 x 400 T4.4 1 220 220 270 450 60 20
100/50 VBM-14 2.500 x 1.250 1.000 x 400 T4.4 4 1.200 400 270 550 60 30
150/75 VBM-4 2.500 x 1.250 1.000 x 400 T4.4 4 1.200 400 270 550 60 30
200/100 VBM-1 2.500 x 1.250 400 x 400 T4.4 1 280 280 270 450 60 25
200/100 VBM-4 2.500 x 1.250 1.000 x 400 T4.4 4 1.200 400 270 550 60 35
300/150 VBM-1 2.500 x 1.250 600 x 600 T4.4 1 460 250 270 550 60 25
300/150 VBM-4 2.500 x 1.250 1.000 x 400 T4.4 4 1.200 400 270 550 60 35

The variable one up to 500 kg

With the VacuBoy Vario you can lift loads horizontally and vertically; you can even “swivel” them. Each suction plate can be switched on and off individu- ally. This makes this lifter series very flexible for different tasks.

Carrying capacity (kg) Type Workpiecedimensions max. (mm) min. (mm) Pump Number of suctionplates L1 (mm) B1 (mm) B2 (mm) H (mm) A (mm) Own weight(kg)
100/50 VBM-2 2.500 x 1.250 400 x 400 T4.4 2 800 125 150 800 60 40
200/100 VBV-2 3.000 x 2.000 600 x 600 T4.4 2 800 220 150 800 60 50
300/150 VBV-2 3.000 x 2.000 600 x 600 T4.4 2 800 280 150 800 60 55
400/200 VBV-2 3.000 x 2.000 800 x 800 T4.4 2 800 340 150 800 60 60
500/250 VBV-2 3.000 x 2.000 800 x 800 T4.4 2 800 400 150 800 60 65

For tubes and profiles up to 800 kg
05

The VacuBoy Tube offers also all advantages and the many accessories of the VacuBoy family. It is especially suitable for:

  • Horizontal transport of profiles and round work pieces
  • Work pieces with widths of 50mm or wider and lengths of 500mm or longer
  • Turning over of long work pieces (in special design)
