Products / Pallet Stackers /
Self Propelled Stacking Trucks
Eco WARRIOR Mono Propelled Stacker
- Ergonomic design
- 1000Kg
- 600mm load centre
- Lift height 1610mm
- Curtis controller industry standard
- Smooth controls
- 100Ah 24v battery
- Free standing 12hr automatic charger
| Model | Capacity (Kg) | Load Centre (mm) | Lowered Height (mm) | Raised Height (mm) | Overall Length (mm) | Overall Width (mm) | Forks Lowered (mm) | Forks Spread (mm) | Net Weight (Kg) |
| CME1016 | 1000 | 600 | 1970 | 1970 | 1725 | 692 | 85 | 540 | 530 |
Eco WARRIOR Self Propelled Pallet Stacker
- 1200Kg
- 600mm load centre
- Lift height 2820mm
- 90 Degree stacking aisle (1200 x 800 pallet) 2040mm
- Curtis controller industry standard
- Full guarding on mast
- 120Ah 24v battery
- Free standing 12hr automatic charger
| Model | Capacity (Kg) | Load Centre (mm) | Lowered Height (mm) | Raised Height (mm) | Overall Length (mm) | Overall Width (mm) | Forks Lowered (mm) | Forks Spread (mm) | Net Weight (Kg) |
| CLE1229 | 1200 | 600 | 1951 | 3265 | 1831 | 890 | 1150 | 570 | 750 |
WARRIOR Self Propelled Heavy Duty Pallet Stacker
- 1500Kg
- 600mm load centre
- Heavy Duty ZF vertical drive
- Curtis controller industry standard
- CANBUS tiller handle – superior reliability
- Adjustable length tiller arm
- Folding rider platform c/w folding side restraints
- Automatic speed reduction over 300mm lift height
- IP53 standard
- Curtis controller industry standard
- Full guarding
- 210-280Ah 24v battery
- Free standing 12hr automatic charger
| Model | Capacity (Kg) | Load Centre (mm) | Lowered Height (mm) | Raised Height (mm) | Overall Length (mm) | Overall Width (mm) | Forks Lowered (mm) | Forks Spread (mm) | Net Weight (Kg) |
| CS1529 | 1500 | 600 | 1950 | 3370 | 2022 | 795 | 85 | 575 | 1025 |
| CS1536 FFL | 1500 | 600 | 2300 | 3670 | 2022 | 795 | 85 | 575 | 1055 |
| CS1546 FFL | 1500 | 600 | 2105 | 5115 | 2065 | 915 | 85 | 575 | 1315 |
| CS1550 FFL | 1500 | 600 | 2205 | 5515 | 2065 | 915 | 85 | 575 | 1355 |
| CS1555 FFL | 1500 | 600 | 2355 | 6015 | 2065 | 915 | 85 | 685 | 1380 |

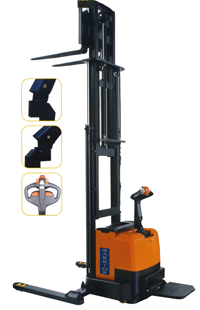

WARRIOR Self Propelled Heavy Duty Straddle Stacker
- 1500Kg
- 600mm load centre
- 3 Models, lift heights between 2900mm- 4600mm
- Heavy Duty ZF vertical drive
- CANBUS tiller handle – superoir reliability
- Adjustable length tiller
- Folding rider platform c/w folding side restraints
- Automatic speed reduction over 300mm lift height
- IP53 standard
- Curtis controller industry standard
- Full guarding on mast
- 210-280Ah 24v battery
- Free standing 12hr automatic charger
| Model | Capacity (Kg) | Load Centre (mm) | Lowered Height (mm) | Raised Height (mm) | Overall Length (mm) | Overall Width (mm) | Forks Lowered (mm) | Forks Spread (mm) | Net Weight (Kg) |
| CS1529M | 1500 | 600 | 1950 | 3370 | 1920 | 1213 – 1518 | 50 | 200 – 720 | 1250 |
| CS1536M | 1500 | 600 | 2300 | 4070 | 1920 | 1213 – 1518 | 50 | 200 – 720 | 1315 |
| CS1546M | 1500 | 600 | 2183 | 5245 | 1920 | 1213 – 1518 | 50 | 200 – 720 | 1490 |
