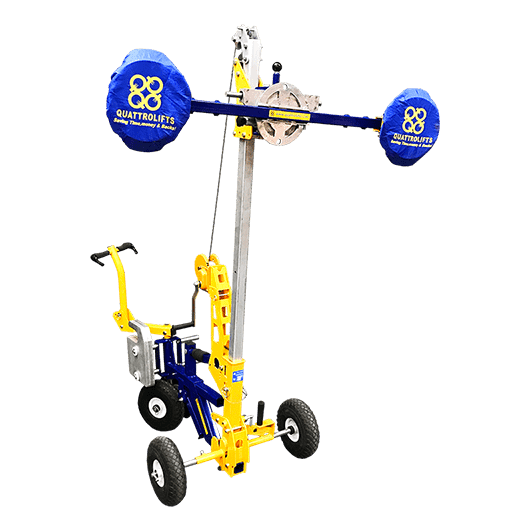

Express 200CW

The Express 200CW is designed to allow glaziers to unload, transport and install large plates of glass.



STANDARD FEATURES

  • Lifting capacity up to 200 Kg
  • 1-2 man operation
  • Portable and modular glazing machine
  • Ideal for glazing in small confined areas
  • 2 x 12″ adjustable and flexible vacuum cups
  • Vacuum head can be tilted, rotated and side shifted
  • Glass can be swivelled to the side for transport through small doors
  • Easily transported inside a van and assembled by one person
  • Fully counter weighted machine



Options:

Express 200 upgrade

Easily turn your existing Express 200 into a 200CW by purchasing the counter-weighted rear half separately.

Additional options:

  • Battery powered vacuum pump



Contact Us for further information

Product Specifications

Lifting capacity up to 200 Kgs
1-2 man operation
Vacuum Cups: 2 x 300mm manual
Pivots glass to side for doorways
Mechanical forward/rear tilt
360 Glass rotation
100mm side shift
Machine weight without counterweights – 110kg
Counterweights - 10 x 15kg
Fully counter weighted machine
